1300 Series Hydraulic Bearing: GM: Borg Warner: T-10, Super T-10: G-Force: "A" Dimension: 2.50"-2.99": 4.680" Register
Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
  • • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.

Application Summary:

Year Make/Model
1971-1974 American Motors Javelin
1971-1974 American Motors Matador
1962-1966 Buick Electra
1965-1966 Buick Gran Sport
1959-1963 Buick Invicta
1963-1964 Buick LeSabre
1965-1966 Buick Skylark
1964-1966 Buick Wildcat
Attributes

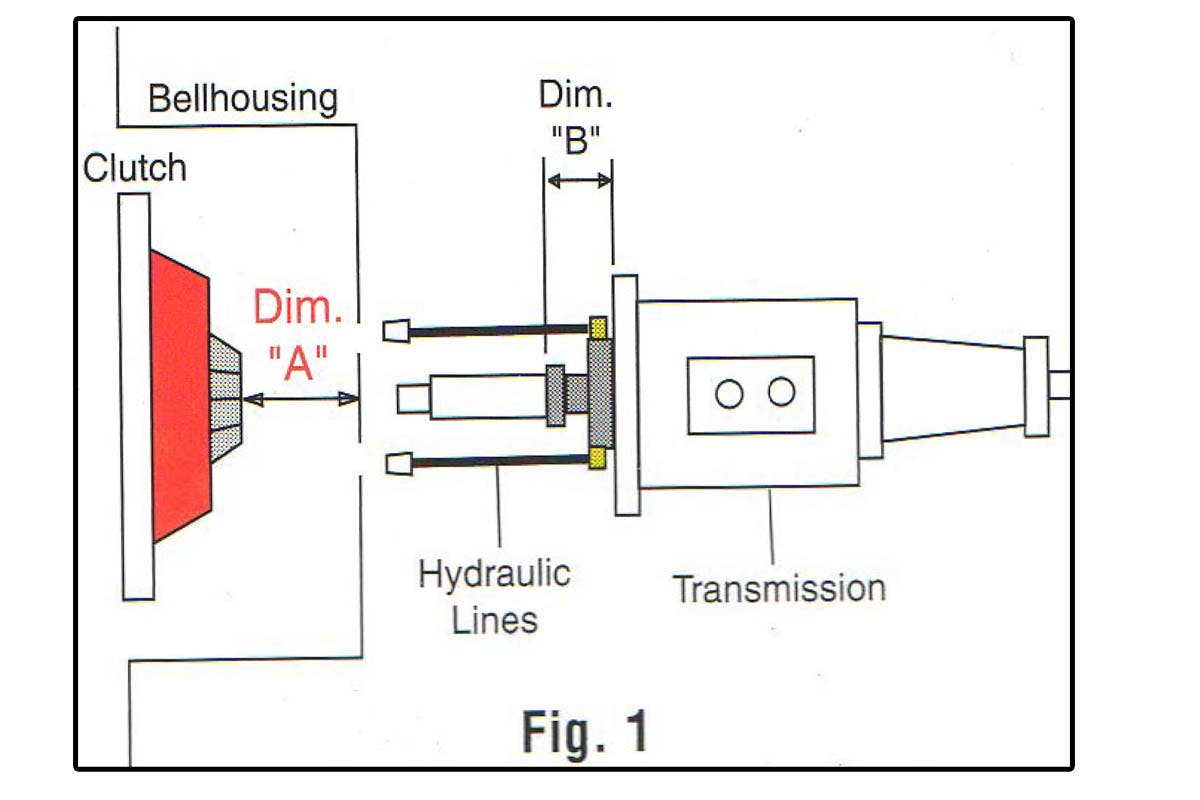

"A" Dimension 2.99In. or Less, 2.50 in. to 2.99 in.
Bearing Face I.D. (in.) 1.590
Bearing Face ID 1.59In.
Bearing Face O.D. (in.) 3.000
Bearing Face OD 3.0In.
Bearing Register O.D. 4.680In., 4.680In.
Country of Origin (Primary) US
Emission Code Legal US
Harmonized Tariff Code (Schedule B) 8708935000
Hazardous Material Code N
Height 1 Spacer 2.590In., 2.590In.
Height 2 Spacers 2.740, 2.740
Height 3 Spacers 2.890In., 2.890In.
Life Cycle Status Code Available to Order
NAFTA Preference Criterion Code B
Note This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
Note 2 This bearing will NOT work with counter weighted diaphragm pressure plates.
Quantity Sold individually.
SDR Required Flag N
SDS Sheet Number N/A
Spline 1 1/8In. x 26, 1 1/8In. x 26
Transmission Borg Warner T-10,Super T-10, G-Force 5 Speed
Warranty Time 90
GTIN 00887753010858
