RST 800HP Twin Disc Clutch: Metric Ring: Ford Mustang GT/Boss302 2011-17: 1 x 23M Spline

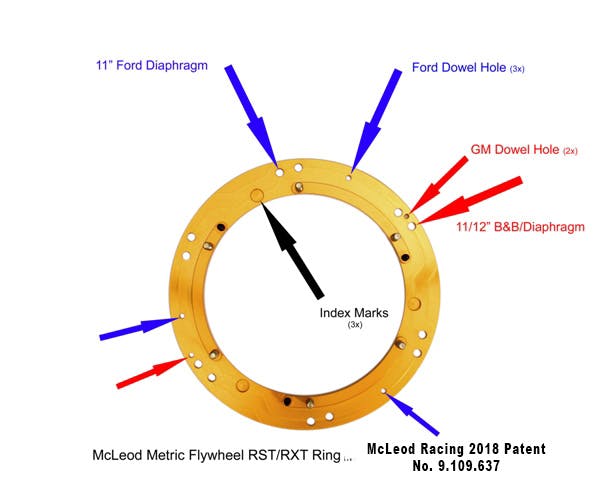

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT HD for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
- • Lighter than Stock Pedal Feel.
• Organic Facings for Smooth Engagement.
• Excellent Release Qualities.
• Bolts to Most Flywheels.
• Available with Aluminum or Steel Flywheel.
Information:
2011-Up Factory Flywheel with 9 Bolt pressure Plate Pattern will not work with this clutch!
Application Summary:
| Year |
Make/Model |
| 2011-2017 |
Ford Mustang |
| Attributes |
| Alignment Tool Included |
Yes, Yes |
| Clutch Disc Quantity |
2 |
| Clutch Patterns |
11In. Mustang with Dowel Pin Holes 2000 and up, 11" GM LS-X With Dowel Pin; 11" Ford Modular with Dowel Pins |
| Clutch Usage |
Performance, Street |
| Country of Origin (Primary) |
US |
| Disc Diameter |
9-11/16In. |
| Disc Diameter (in.) |
9.688 |
| Disc Material |
Organic, Organic |
| Disc Style |
Full face, Solid Hub |
| Emission Code |
Legal US |
| Engine |
2011-2017 5.0L Coyote 8 Bolt Crank |
| Flywheel Fitment |
Fits 164 Tooth Flywheel, For use with Ford Modular/GM LS-X |
| Flywheel Included |
No, No |
| Hardware Included |
Yes, Yes |
| Harmonized Tariff Code (Schedule B) |
8708935000 |
| Hazardous Material Code |
N |
| Horsepower Rating |
800, 800 |
| Hub Style |
Solid, Solid |
| Input Shaft Diameter (in.) |
1.000 |
| Input Spline Quantity |
23M |
| Life Cycle Status Code |
Available to Order |
| Make |
Ford |
| NAFTA Preference Criterion Code |
B |
| NOTE 2: |
This clutch will not fit on flywheels with crank relief larger than 6.250In. in diameter. Please call McLeod Tech for recommendation (714) 630-2764. |
| NOTE: |
This clutch will not bolt up to the OEM flywheel with factory 9 bolt pressure plate pattern. Please call McLeod Tech for recommendation (714) 630-2764. |
| Notes |
Will NOT fit Ford w/9 Bolt Pattern. Aftermarket Flywheel Requried. |
| Number of Discs |
Double |
| Pilot Bushing Included |
No, No |
| Pilot Bushing Material |
N/A |
| Pressure Plate Style |
Diaphragm, Diaphragm |
| Quantity |
Sold as a kit., Sold as a kit. |
| SDR Required Flag |
N |
| SDS Sheet Number |
N/A |
| Spline |
1In. x 23 |
| Stock Disc Size |
11In. |
| Throwout Bearing Included |
No, No |
| Throwout Bearing Style |
Standard |
| Warranty Time |
90 |
| GTIN |
00887753011282 |
