RXT HD 1300HP Twin Disc Clutch: For use with Large Diameter Flywheel: Red Ring: 1-3/8 x 10 Spline

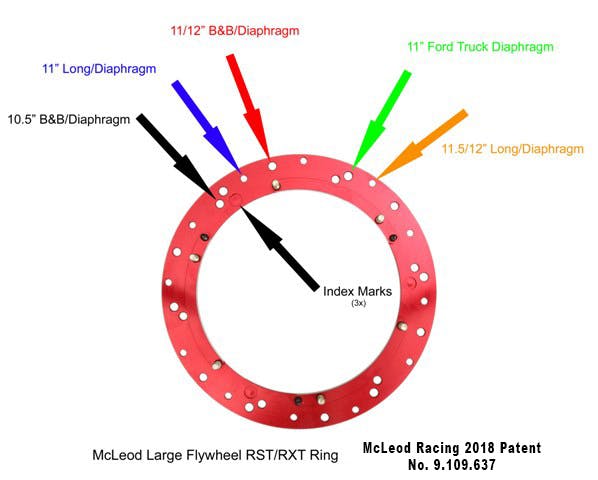

McLeod RXT HD – Rated up to 1300 HP, this twin disc clutch is Intended for the high horsepower street/strip fan. This clutch can handle serious horsepower and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT HD is what you’ll need! This series of clutches comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
  • • Metallic Facings for Increased Holding Power. • Higher Clamp Load Pressure Plate. • Excellent Release Qualities. • Bolts to Most Flywheels. • Available with Aluminum or Steel Flywheel.

Application Summary:

Year Make/Model
1964-1972 Ford Custom
1973 Ford Custom 500
1964-1969 Ford Fairlane
1970 Ford Falcon
1964-1967 Ford Galaxie
1968-1973 Ford Galaxie 500
1966-1969 Ford GT40
1966-1973 Ford LTD
1968-1971 Ford Mustang
1968-1971 Ford Ranchero
1968-1973 Ford Torino
1964-1969 Mercury Comet
1965-1968 Mercury Commuter
1968-1971 Mercury Cougar
1964-1971 Mercury Cyclone
1969-1970 Mercury Marauder
1967-1971 Mercury Marquis
1964-1968 Mercury Montclair
1968-1973 Mercury Montego
1964-1973 Mercury Monterey
1964-1968 Mercury Park Lane
Attributes
Additional Counter Weight Kit Required No
Alignment Tool Included Yes, Yes
Clutch Disc Quantity 2
Clutch Patterns 11/11.5/12 in. Borg & Beck/Diaphragm/Long w/Shouldered Bolt, 11In./12In. Borg & Beck
Clutch Patterns 2 11In. Ford Long
Clutch Patterns 3 11.5In./12In. Ford Long
Clutch Patterns 4 11In. Ford Truck
Clutch Usage Performance, Street
Country of Origin (Primary) US
Disc Diameter 9.687In.
Disc Diameter (in.) 9.688
Disc Material Ceramic, Organic
Disc Style Segmented, Full Face
Emission Code Legal US
Engine All
Engine Balance Neutral
Flywheel Fitment For use with Large Diameter Flywheel, For use with Large Diameter Flywheel
Flywheel Included No, No
Flywheel Material N/A
Hardware Included Yes, No
Harmonized Tariff Code (Schedule B) 8708935000
Hazardous Material Code N
Horsepower Rating 1300, 1300
Hub Style Solid, Solid
Input Shaft Diameter (in.) 1.375
Input Spline Quantity 10
Life Cycle Status Code Available to Order
Make GM, Ford, Mopar
NAFTA Preference Criterion Code B
Note This application requires a 1300 Series Bolt on style bearing to work properly.
NOTE: This application require a 1300 Series Bolt on style bearing to work properly. Please Call McLeod Tech for more info at 714 630 2764
Notes Must use internal Hydraulic Bearing with this application.
Number of Discs Double
Pilot Bushing Included No, No
Pilot Bushing Material N/A
Pressure Plate Style Diaphragm, Diaphragm
Quantity Sold as a kit.
Ring Gear N/A
SDR Required Flag N
SDS Sheet Number N/A
Spline 1-3/8 x 10
Throwout Bearing Included No, No
Throwout Bearing Style Standard
Torque Rating 800 Ft. Lbs.
Warranty Time 90
GTIN 00887753019035
