Rebuildable and serviceable. Custom valving options available.
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- 7/8" hard chrome plated 17-4 H900 stainless steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Information:
Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride.| Attributes | |
| Adjuster Type | DSC - Dual Speed Compression |
| Body Diameter (in) | 2 |
| Body Finish | FOX Grey Cerakote |
| Body Material | Steel |
| Bottom Mount | Eyelet |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compressed Length (in) | 21.5 |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| Extended Length (IN) | 35.42 |
| Eyelet Length (in) | 2 |
| FOX CATALOG | OFFROAD |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Hazardous Material Code | N |
| Hose | -8 x 18.00 |
| Label Name | 2.0 FRS, CO, R/R-RT (Ø2.5), DSC, 14" |
| Life Cycle Status Code | Available to Order |
| Mounting | 1/2 x 1-1/2, 1/2 x 1-1/2 |
| NAFTA Preference Criterion Code | B |
| Reservoir Dimensions | 2.55 x 8.00 |
| Reservoir Type | Rotating Remote, Rotating Remote |
| SDR Required Flag | N |

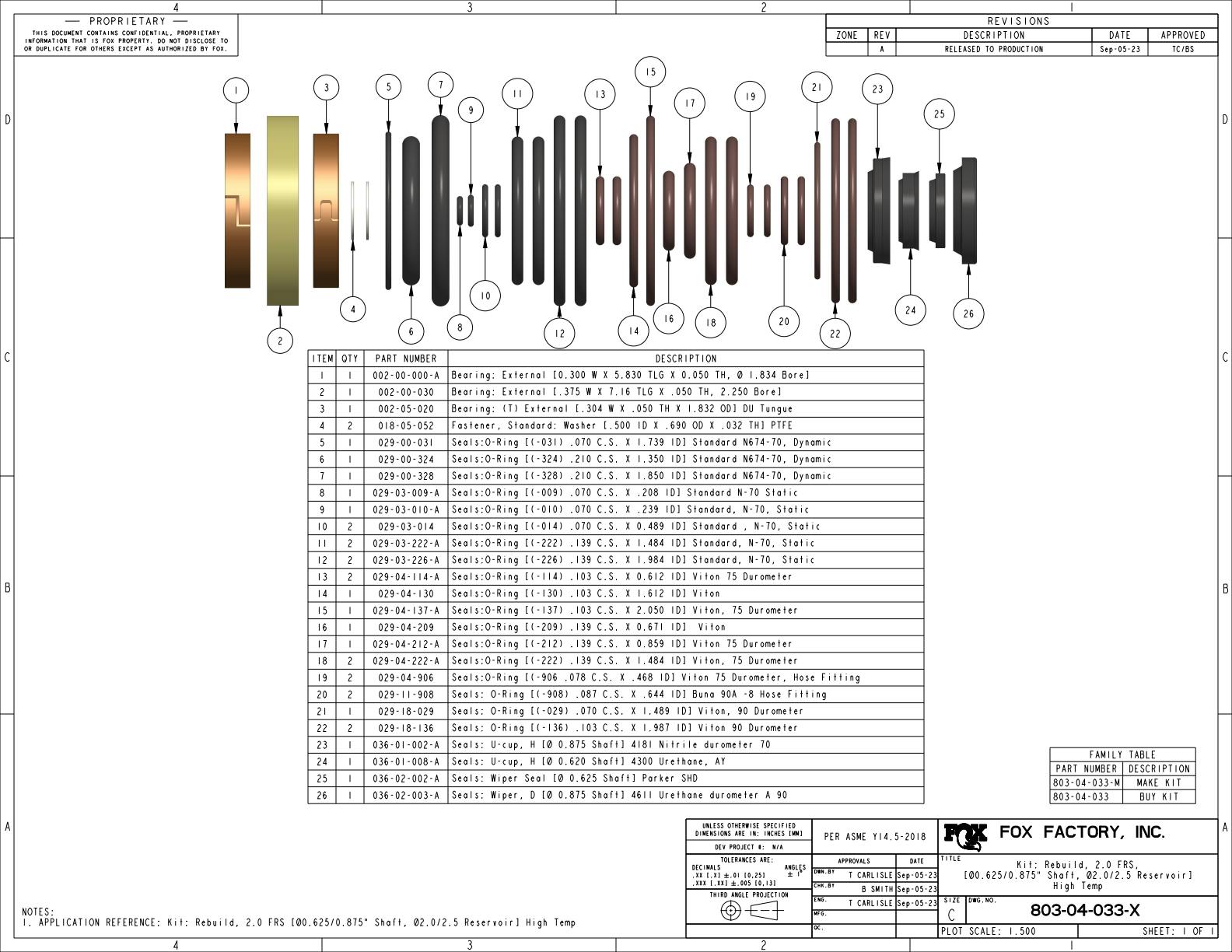

| Seal Kit | 803-04-033 |
| Series | Factory Race |
| Shaft Size (in) | 7/8 |
| Top Mount | Eyelet |
| Travel (in) | 13.92 |
| Travel (rounded) | 14 |
| Type | Coil-Over |
| Valving | 807-24-066 |
| Warranty Time | 12 |
| GTIN | 00692878901840 |
